LIIR
The world's FIRST rangefinder in a lens!
CONOTECH LIIR technology is patented, patent NO. 202023103202

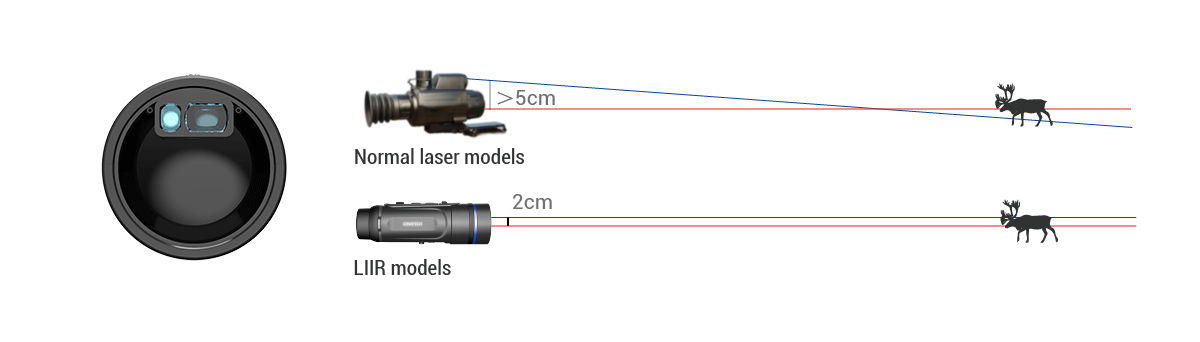

LIIR, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.
iF Design Award
Aquila series thermal monocular has been honored with the prestigious iF Design Award, a testament to our commitment to excellence in innovation and design.
Highly sensitive thermal sensor

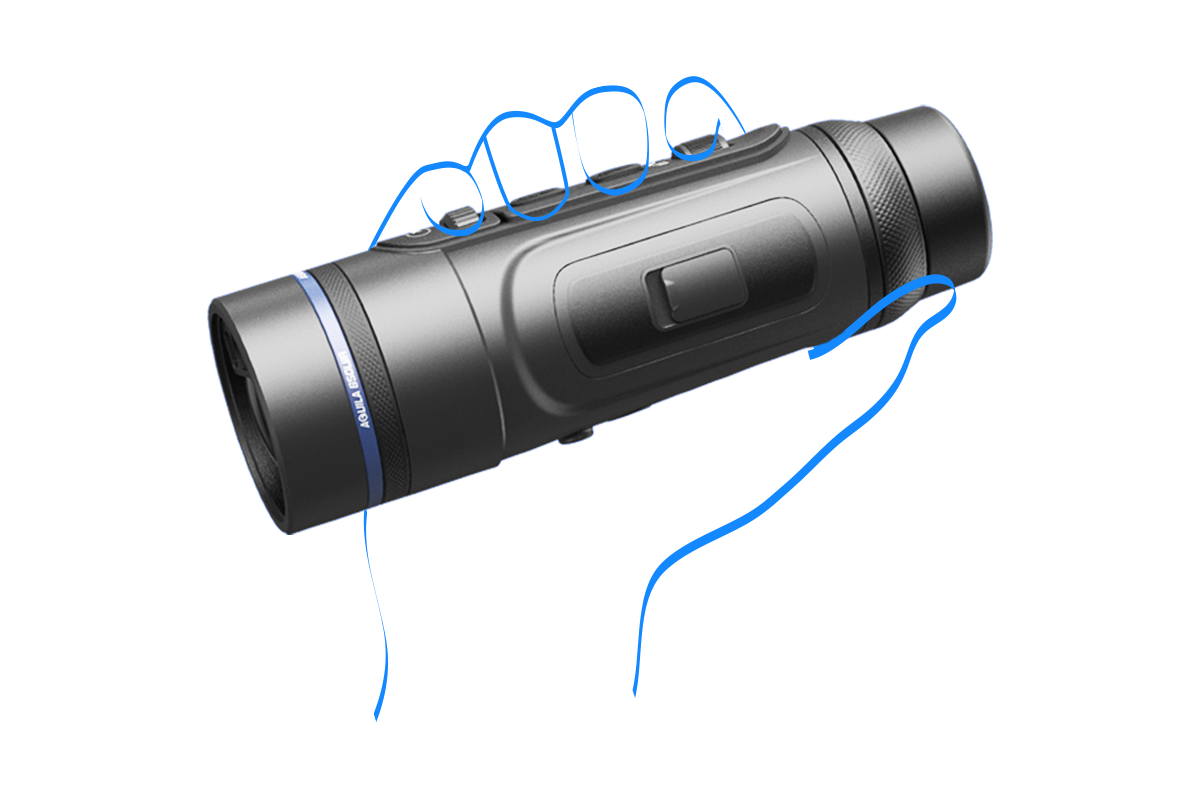

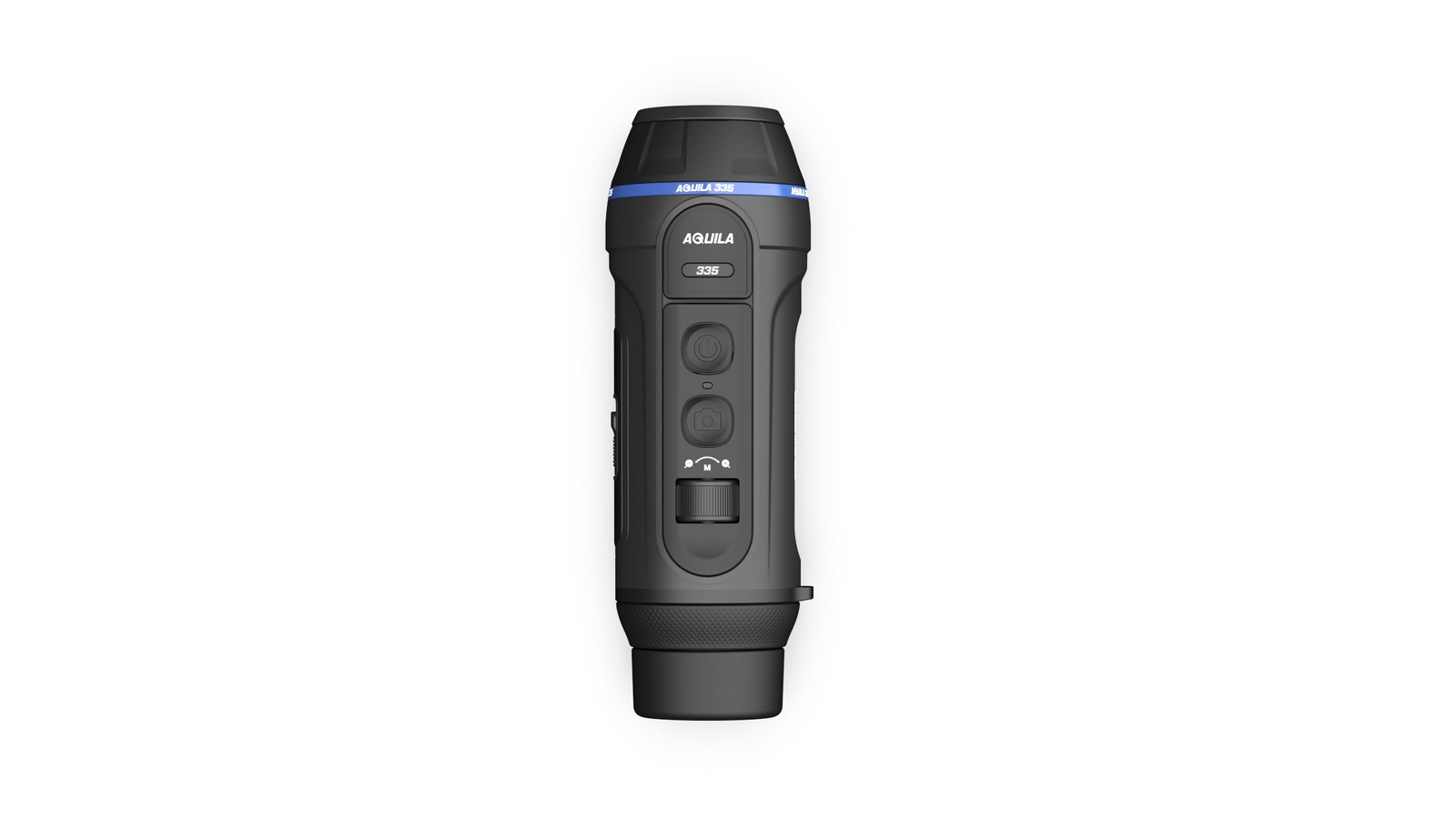

One hand operation
Featuring finger wheel focusing, the device enables the pinnacle of one-handed operation. Very user-friendly for both left and right-handed users.

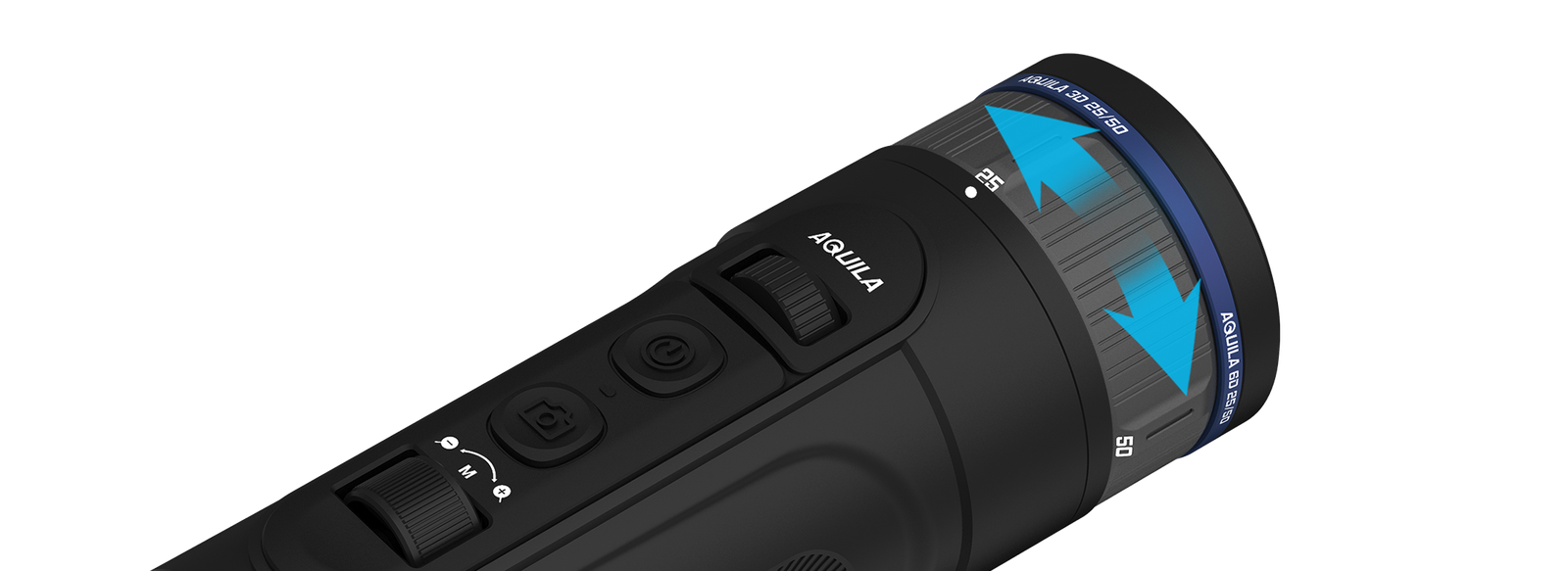

Dual FOV lens
Dual FOV lens (19/38mm, 25/50mm), a wide FOV for detection and a narrow FOV for identification.
Sharp picture quality with only one-time focus.

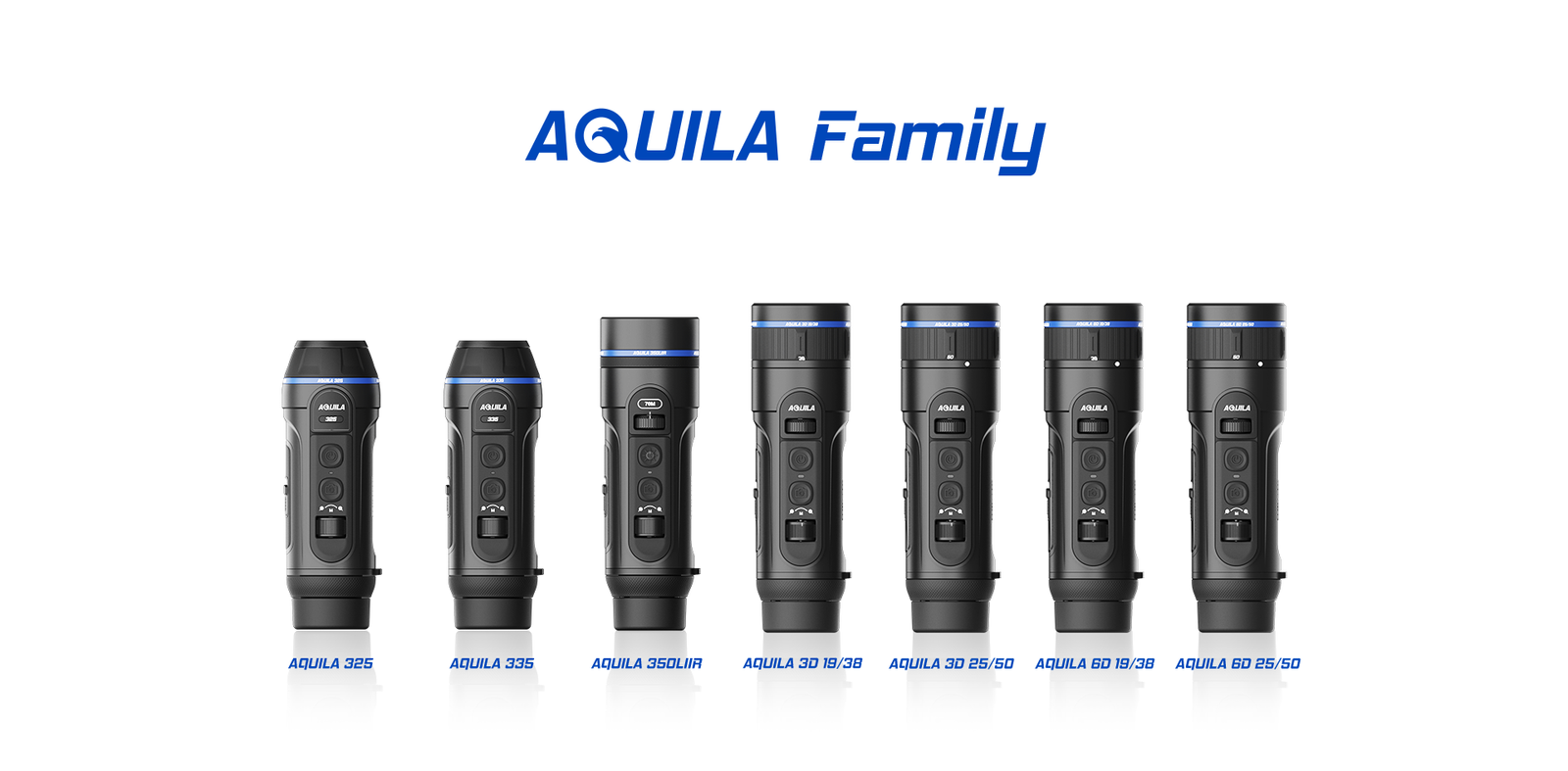

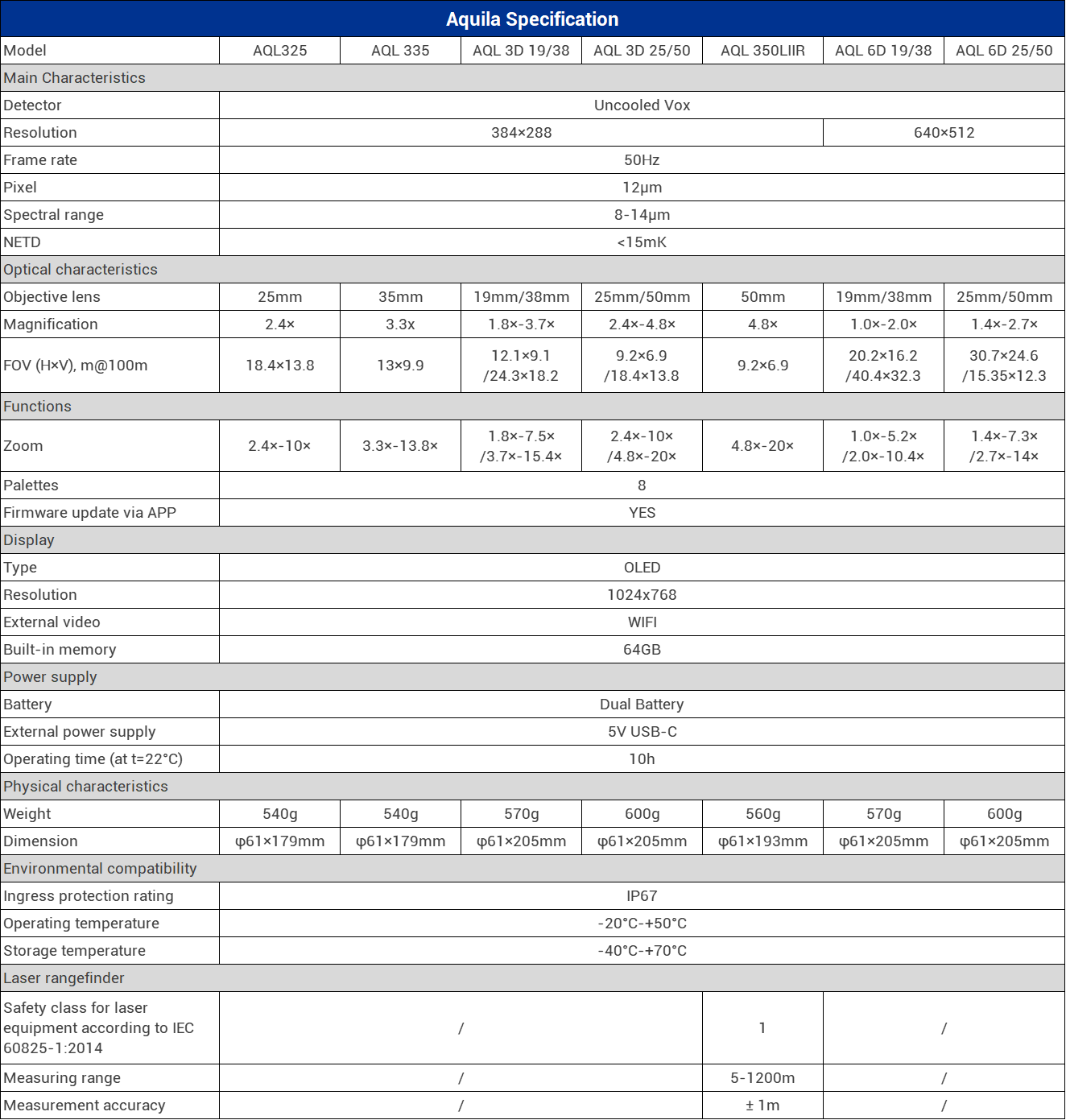

| Aquila Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | AQL325 | AQL 335 | AQL 3D 19/38 | AQL 3D 25/50 | AQL 350LIR | AQL 6D 19/38 | AQL 6D 25/50 | |
| Main Characteristics | ||||||||
| Detector | Uncooled Vox | |||||||
| Resolution | 384×288 | 640×512 | ||||||
| Frame rate | 50Hz | |||||||
| Pixel | 12μm | |||||||
| Spectral range | 8-14μm | |||||||
| NETD | <25mK | |||||||
| Optical characteristics | ||||||||
| Objective lens | 25mm | 35mm | 19mm/38mm | 25mm/50mm | 50mm | 19mm/38mm | 25mm/50mm | |
| Magnification | 2.4× | 3.3× | 1.8×-3.7× | 2.4×-4.8× | 4.8× | 1.0×-2.0× | 1.4×-2.7× | |
| FOV (H×V) @100m | 18.4×13.8 | 13.9×9 | 12.1×9.1 /24.3×18.2 |
9.2×6.9 /18.4×13.8 |
9.2×6.9 | 20.2×16.2 /40.4×32.3 |
30.7×24.6 /15.35×12.3 |
|
| Functions | ||||||||
| Zoom | 2.4×-10× | 3.3×-13.8× | 1.8×-7.5× /3.7×-15.4× |
2.4×-10× /4.8×-20× |
4.8×-20× | 1.0×-5.2× /2.0×-10.4× |
1.4×-7.3× /2.7×-14× |
|
| Palettes | 8 | |||||||
| Firmware update via APP | YES | |||||||
| Display | ||||||||
| Type | OLED | |||||||
| Resolution | 1024×768 | |||||||
| External video | WIFI | |||||||
| Built-in memory | 64GB | |||||||
| Power supply | ||||||||
| Battery | Dual Battery | |||||||
| External power supply | 5V USB-C | |||||||
| Operating time (at t=22°C) | 10h | |||||||
| Physical characteristics | ||||||||
| Weight | 540g | 540g | 570g | 600g | 560g | 570g | 600g | |
| Dimension | φ61×179mm | φ61×179mm | φ61×205mm | φ61×205mm | φ61×193mm | φ61×205mm | φ61×205mm | |
| Environmental compatibility | ||||||||
| Ingress protection rating | IP67 | |||||||
| Operating temperature | -20°C~+50°C | |||||||
| Storage temperature | -40°C~+70°C | |||||||
| Laser rangefinder | ||||||||
| Safety class for laser Equipment according to IEC 60825-1:2014 | / | 1 | / | |||||
| Measuring range | / | 5-1200m | / | |||||
| Measurement accuracy | / | ±1m | / | |||||
