Thermal Monocular
Aquila pro
- Product
- Aquila PRO
LIIR
The world's FIRST rangefinder in a lens!
CONOTECH LIIR technology is patented, patent NO. 202023103202
LIIR, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.
iF Design Award
Aquila series thermal monocular has been honored with the prestigious iF Design Award, a testament to our commitment to excellence in innovation and design.
Highly sensitive thermal sensor
One hand operation
Featuring finger wheel focusing, the device enables the pinnacle of one-handed operation. Very user-friendly for both left and right-handed users.

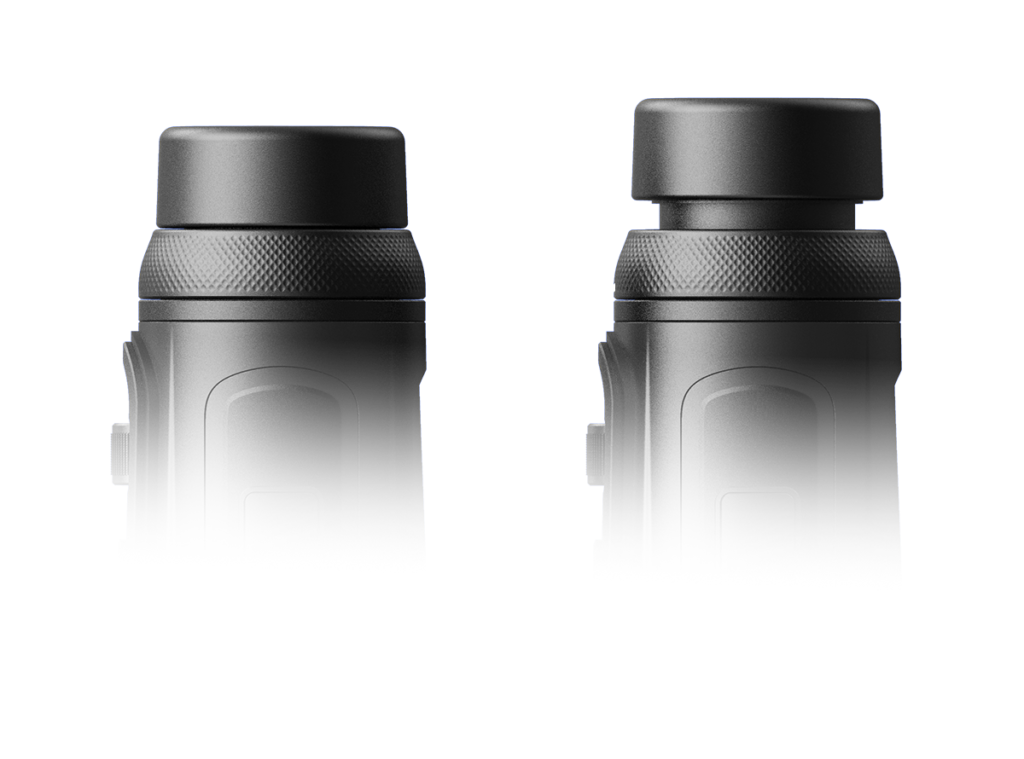

Comfortable for spectacle wearers
The device comes with an eyepiece adjustment mechanism, making it more user-friendly for those who wear glasses.
Super long operating time
Built-in battery plus external battery for 10 operating hours.

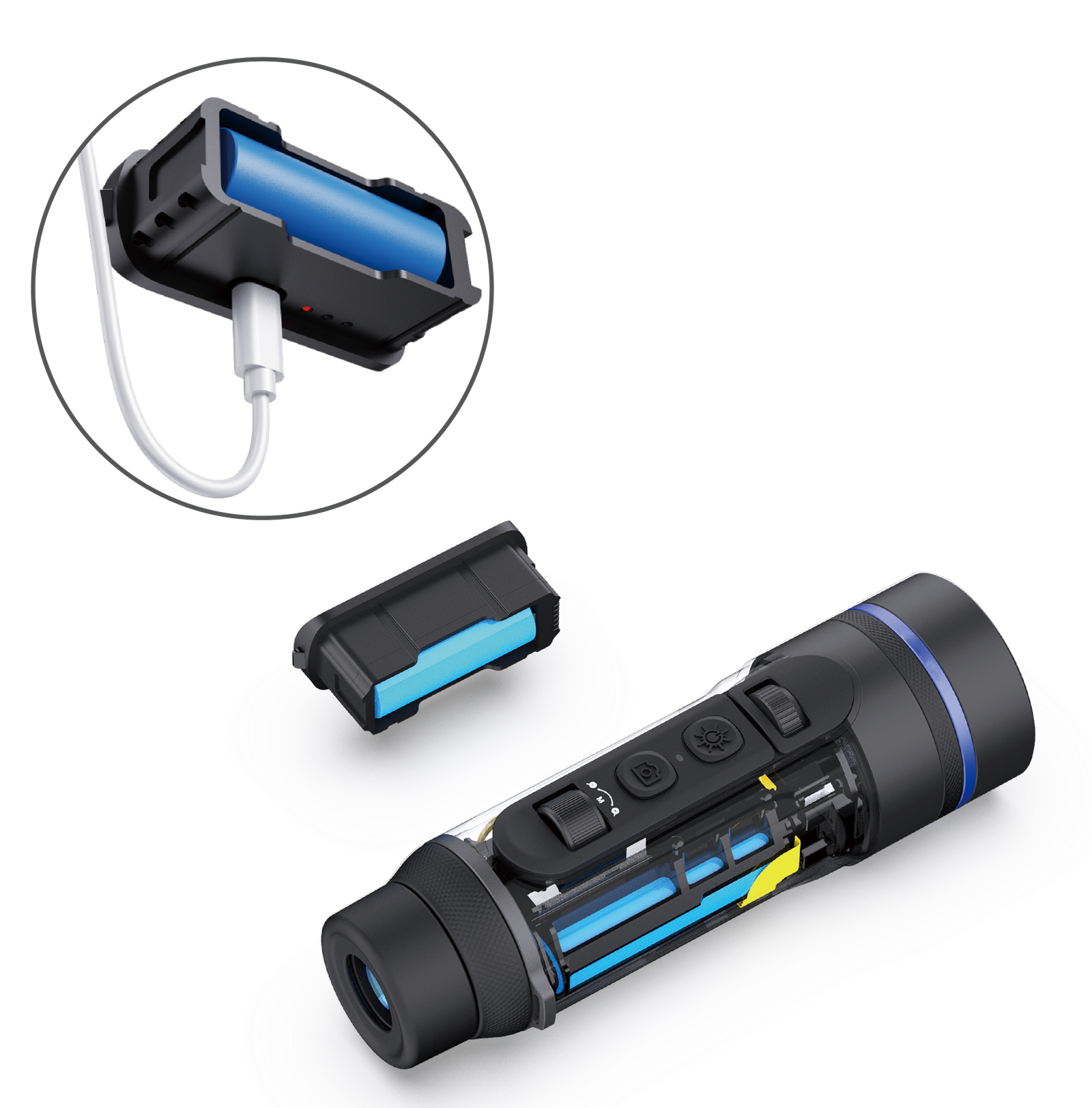

Non-stop operation
The external battery can be replaced without interrupting the device’s functionality, ensuring continuous performance.
Easy charging
Battery compartment can function separately as a charger.

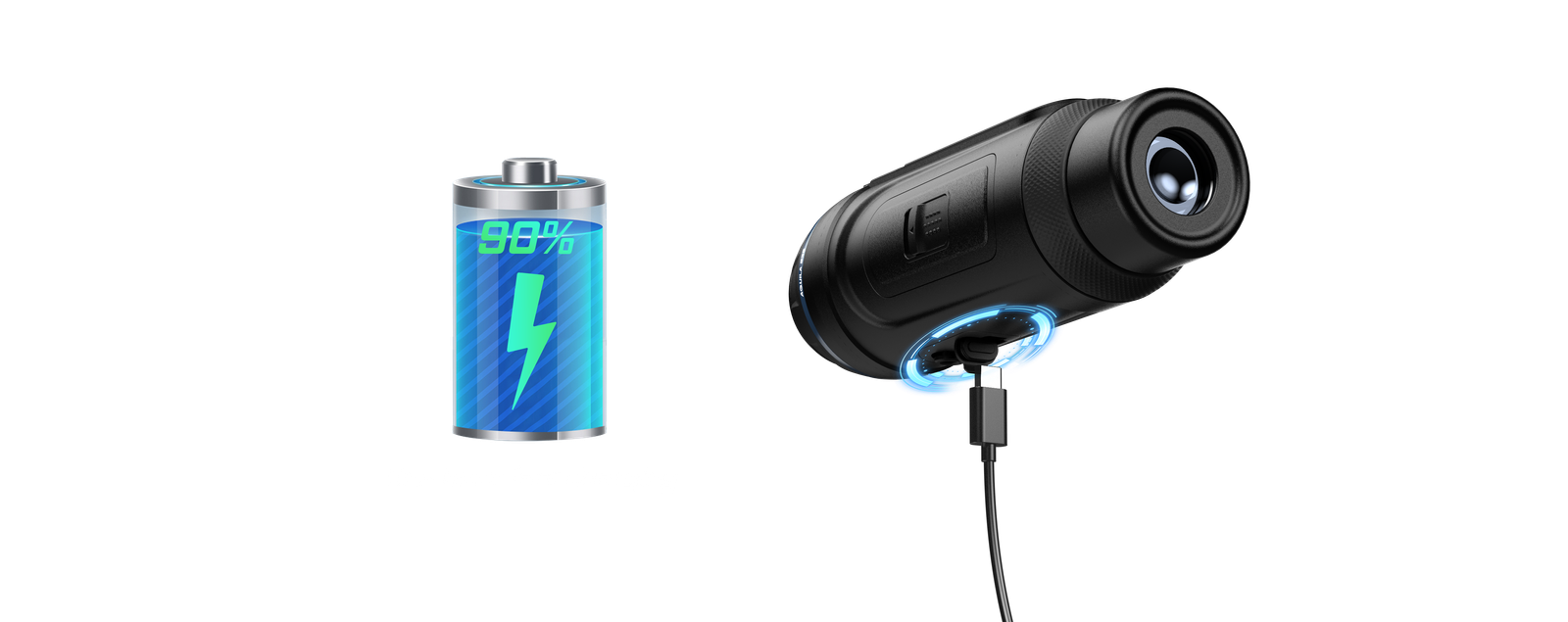

Quick charge
Experience rapid power with our quick charge feature-get to 90% in just one hour.

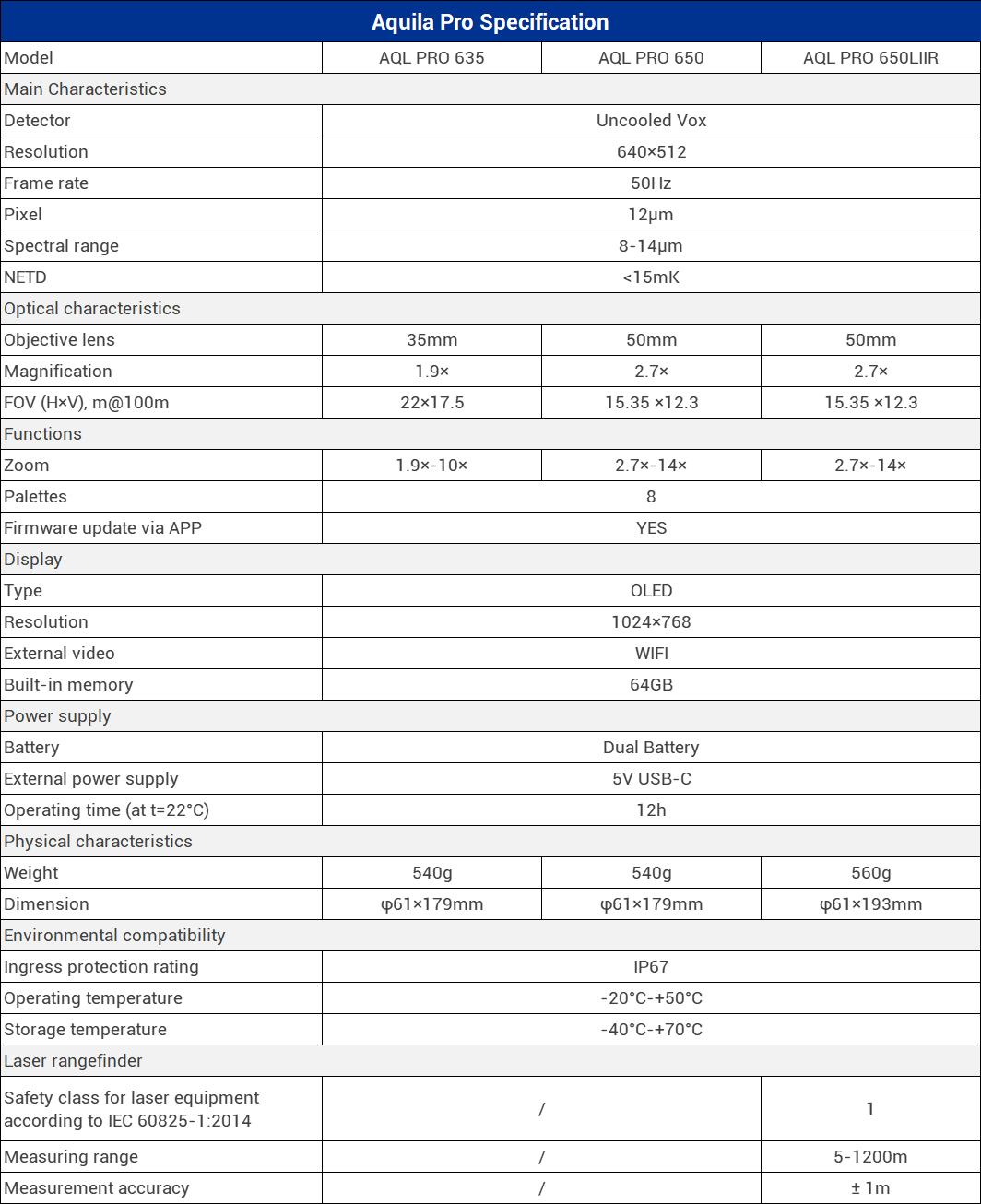

| Aquila Pro Specification | |||
|---|---|---|---|
| Model | AQL PRO 635 | AQL PRO 650 | AQL PRO 650LIR |
| Main Characteristics | |||
| Detector | Uncooled Vox | ||
| Resolution | 640×512 | ||
| Frame rate | 50Hz | ||
| Pixel | 12μm | ||
| Spectral range | 8-14μm | ||
| NETD | <15mK | ||
| Optical characteristics | |||
| Objective lens | 35mm | 50mm | 50mm |
| Magnification | 1.9× | 2.7× | 2.7× |
| FOV (H×V), m@100m | 22×17.5 | 15.35×12.3 | 15.35×12.3 |
| Functions | |||
| Zoom | 1.9×-10× | 2.7×-14× | 2.7×-14× |
| Palettes | 8 | ||
| Firmware update via APP | YES | ||
| Display | |||
| Type | OLED | ||
| Resolution | 1024×768 | ||
| External video | WIFI | ||
| Built-in memory | 64GB | ||
| Power supply | |||
| Battery | Dual Battery | ||
| External power supply | 5V USB-C | ||
| Operating time (at t=22°C) | 12h | ||
| Physical characteristics | |||
| Weight | 540g | 540g | 560g |
| Dimension | φ61×179mm | φ61×179mm | φ61×193mm |
| Environmental compatibility | |||
| Ingress protection rating | IP67 | ||
| Operating temperature | -20°C~+50°C | ||
| Storage temperature | -40°C~+70°C | ||
| Laser rangefinder | |||
| Safety class for laser according to IEC 60825-1:2014 | / | / | 1 |
| Measuring range | / | / | 5-1200m |
| Measurement accuracy | / | / | ±1m |
