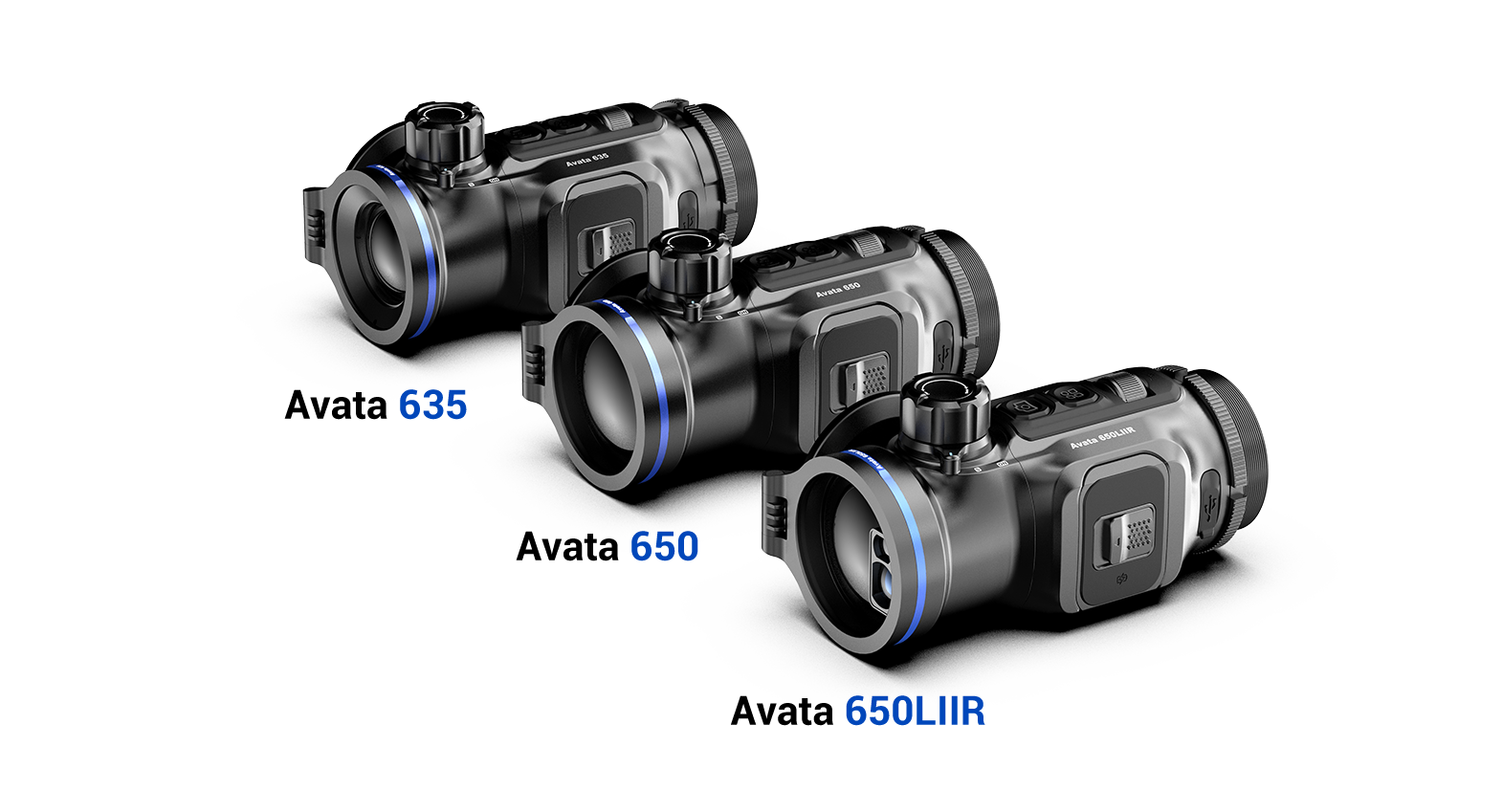

AVATA
- Product
- Avata
LIIR
The world's FIRST rangefinder in a lens!
CONOTECH LIIR technology is patented, patent NO. 202023103202

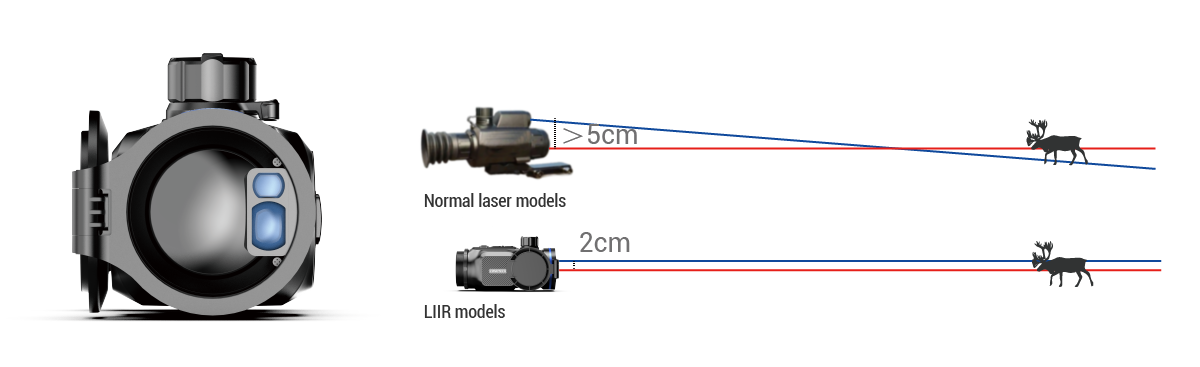

LIIR, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.
Highly sensitive thermal sensor

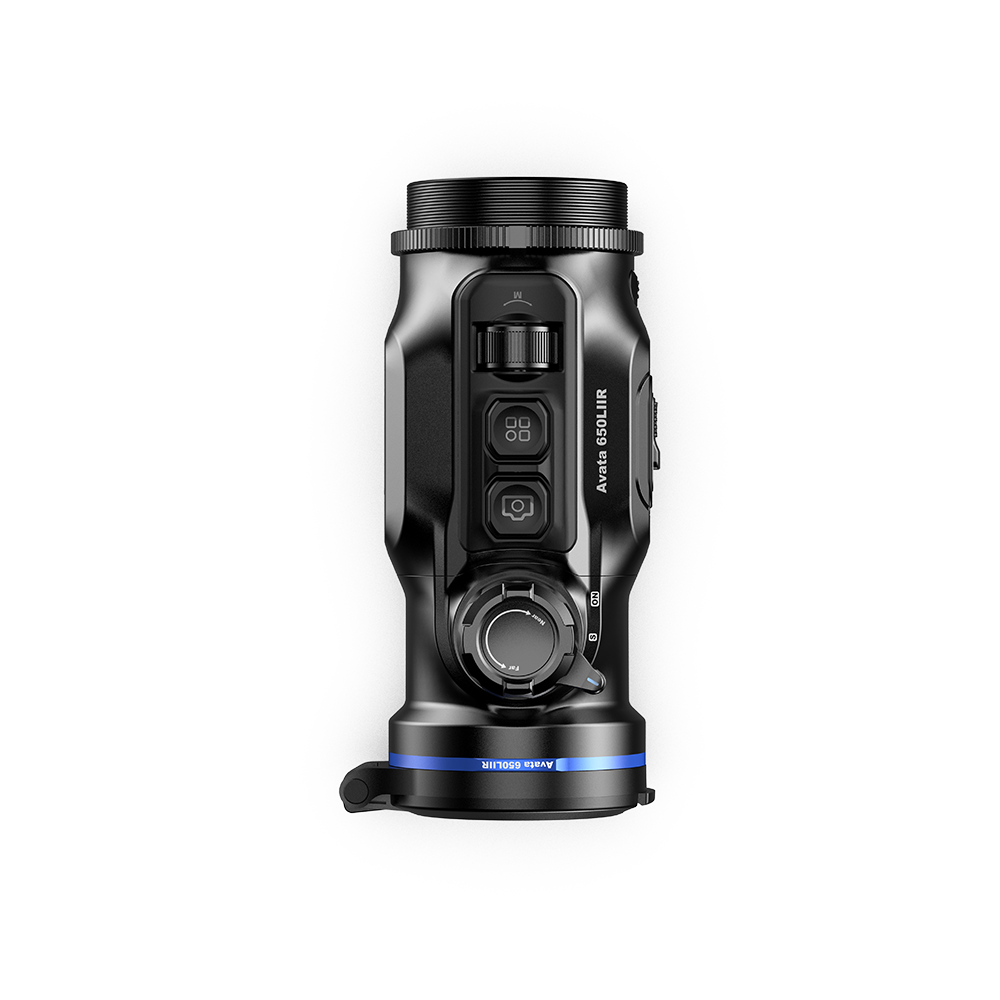

Controller design
The controller is engineered for quick operation, accommodating
both left and right-handed users with its ergonomic design.
Three-position switch
The three-position switch offers a visible and
tactile response for rapid and intuitive handling,
ensuring efficient operation.
No rezeroing and quickly mounted
Quickly mounted in front of your day scope to provide
enhanced thermal capabilities without having to re-zero
your daylight scope.

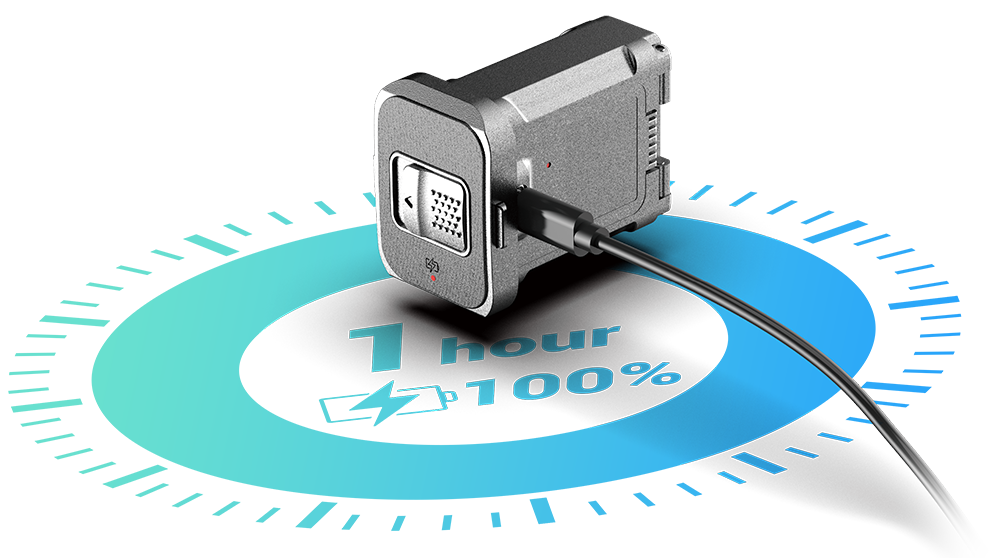

Quick charging
Experience rapid power with our quick charge
feature – get 100% charged in just 1 hour.
Easy charging
Battery compartment can function separately as a charger.
Support only 1 battery
The battery compartment supports charging for two batteries,
but the device can also function efficiently with just one battery without compromising performance.

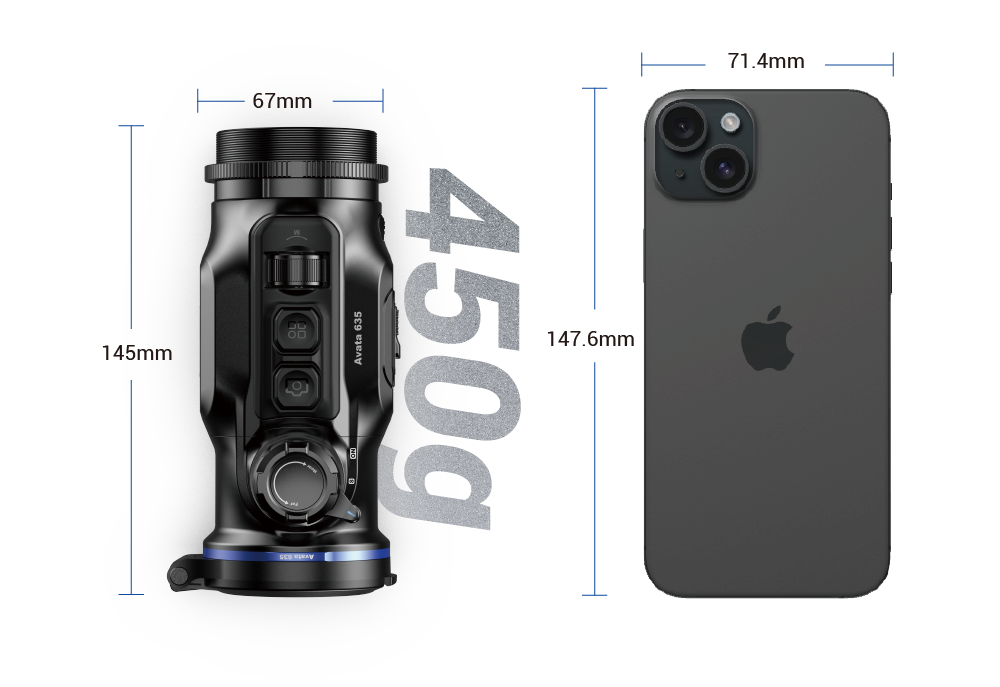

Ultra-light, ultra-compact
The compact and lightweight design provides
easier portability, balance and accuracy of the
rifle, and comfort when hunting.
7000J high shock resistance
Recoil rated up to .223 Rem, .234 Win, .270 Win,
.308 Win, .30-06 SPRG, 9.3×62, .300 Win Mag.
0.67 MOA accuracy
Avata delivers exceptional accuracy and superior
performance across various applications.

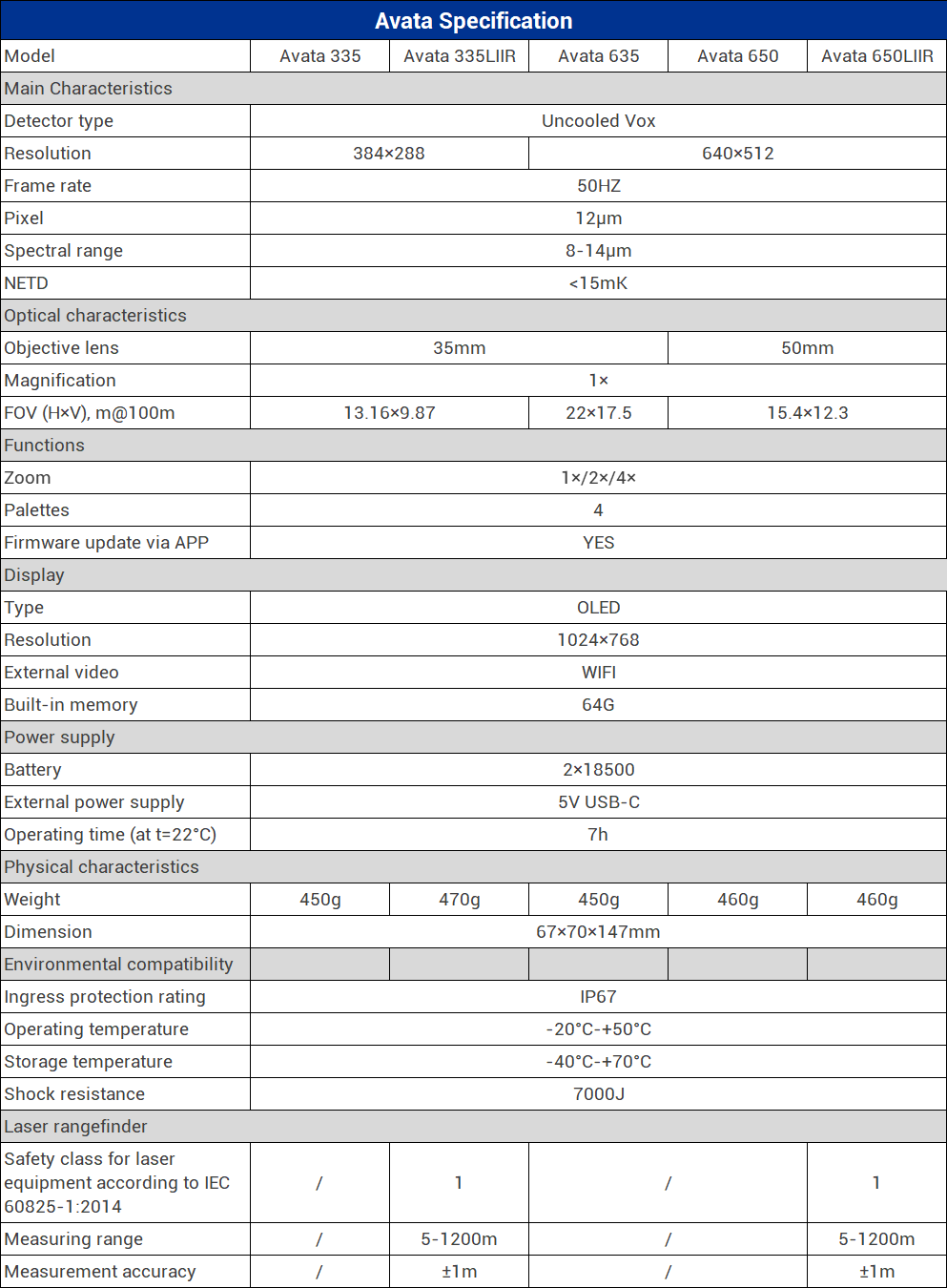

| Avata Specification | |||||
|---|---|---|---|---|---|
| Model | Avata 335 | Avata 335LIIR | Avata 635 | Avata 650 | Avata 650LIIR |
| Main Characteristics | |||||
| Detector type | Uncooled Vox | ||||
| Resolution | 384×288 | 640×512 | |||
| Frame rate | 50HZ | ||||
| Pixel | 12μm | ||||
| Spectral range | 8-14μm | ||||
| NETD | <15mK | ||||
| Optical characteristics | |||||
| Objective lens | 35mm | 50mm | |||
| Magnification | 1× | ||||
| FOV (H×V), m@100m | 13.16×9.87 | 22×17.5 | 15.4×12.3 | ||
| Functions | |||||
| Zoom | 1×/2×/4× | ||||
| Palettes | 4 | ||||
| Firmware update via APP | YES | ||||
| Display | |||||
| Type | OLED | ||||
| Resolution | 1024×768 | ||||
| External video | WIFI | ||||
| Built-in memory | 64G | ||||
| Power supply | |||||
| Battery | 2×18500 | ||||
| External power supply | 5V USB-C | ||||
| Operating time (at t=22°C) | 7h | ||||
| Physical characteristics | |||||
| Weight | 450g | 470g | 450g | 460g | 460g |
| Dimension | 67×70×147mm | ||||
| Environmental compatibility | |||||
| Ingress protection rating | IP67 | ||||
| Operating temperature | -20°C-+50°C | ||||
| Storage temperature | -40°C-+70°C | ||||
| Shock resistance | 7000J | ||||
| Laser rangefinder | |||||
| Safety class for laser equipment according to IEC 60825-1:2014 | / | 1 | / | / | 1 |
| Measuring range | / | 5-1200m | / | / | 5-1200m |
| Measurement accuracy | / | ±1m | / | / | ±1m |
