Product

Ergonomic design

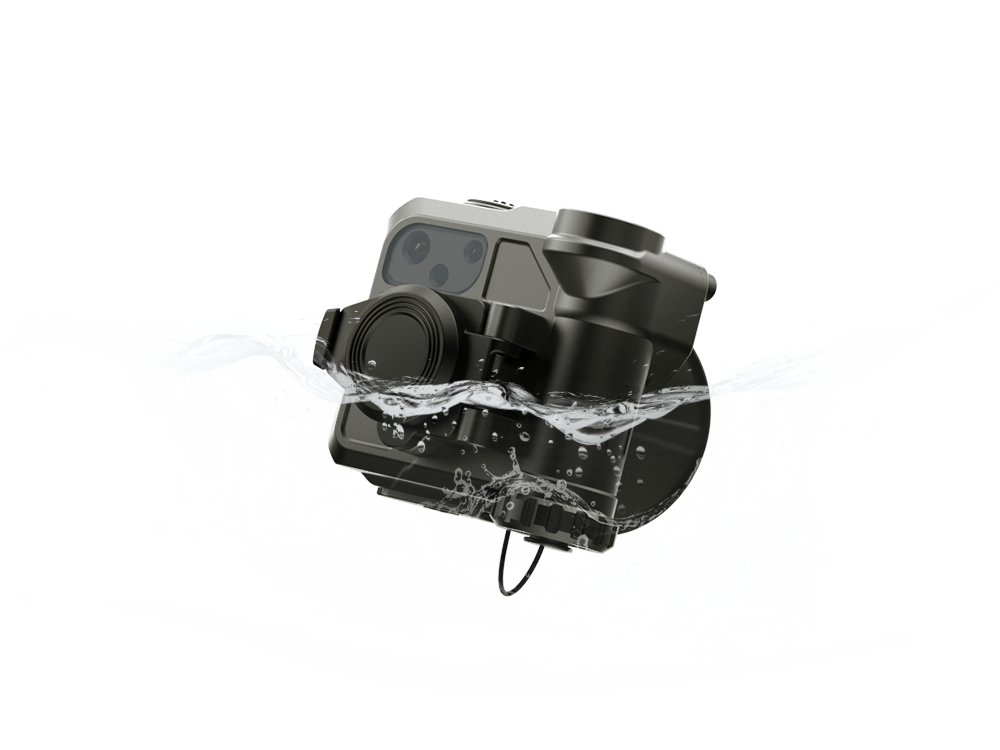

IP67 Protect level

The Pharos 3 can be operated in precipitation of any intensity, e. g. Heavy shower or snowfall, even underwater.

Palette

The Pharos 3 offers multiple palettes for different personal preferences, environments, and situations.

Pharos 3 Specification

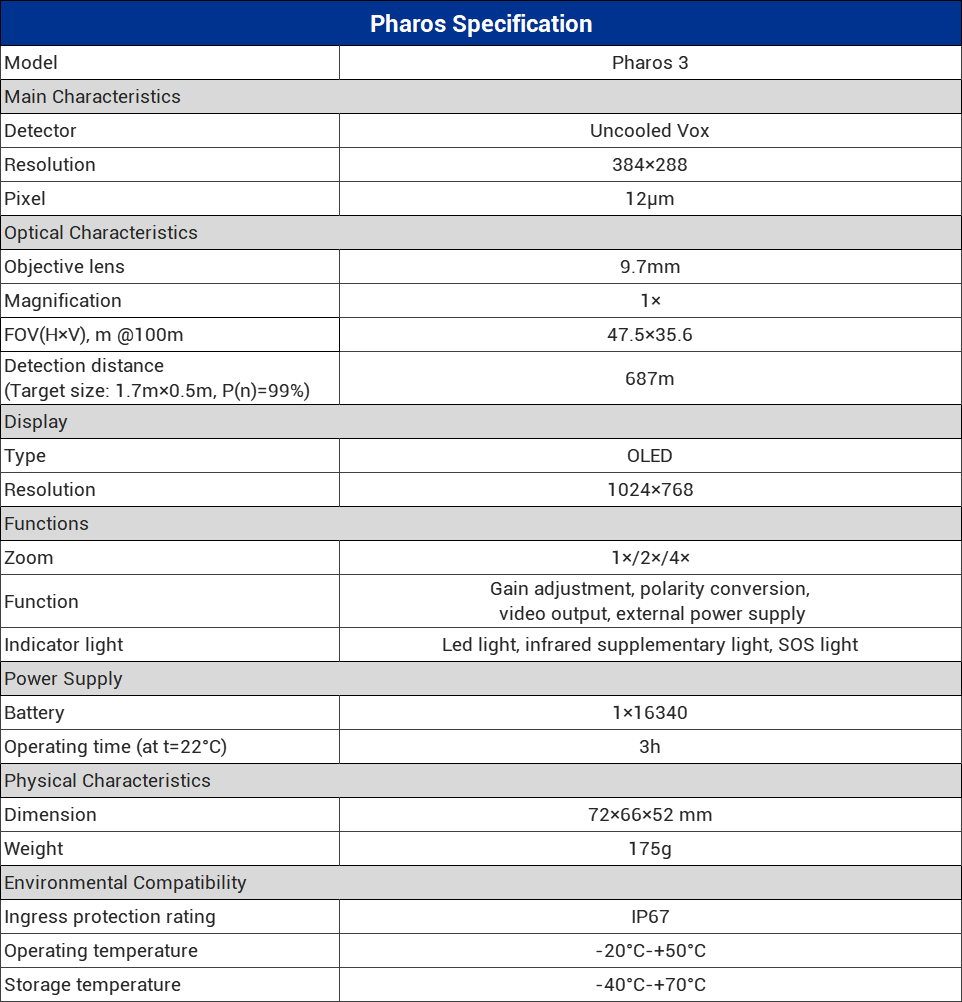

Pharos Specification
Model Pharos 3
Main Characteristics
Detector Uncooled Vox
Resolution 384×288
Pixel 12μm
Optical Characteristics
Objective lens 9.7mm
Magnification
FOV(H×V), m @100m 47.5×35.6
Detection distance (Target size: 1.7m×0.5m, P(n)=99%) 687m
Display
Type OLED
Resolution 1024×768
Functions
Zoom 1×/2×/4×
Function Gain adjustment, polarity conversion, video output, external power supply
Indicator light Led light, infrared supplementary light, SOS light
Power Supply
Battery 1×16340
Operating time (at t=22°C) 3h
Physical Characteristics
Dimension 72×66×52 mm
Weight 175g
Environmental Compatibility
Ingress protection rating IP67
Operating temperature -20°C-+50°C
Storage temperature -40°C-+70°C
