Product

Ergonomic design

12μm Advanced Imaging Sensor

The units have high sensitive thermal imaging sensor. This provides Polaris with the wonderful detail recognition even when the thermal contrast of the surroundings is low – during the snow, dust, smoke, fog, haze, and other atmospheric obscurants.

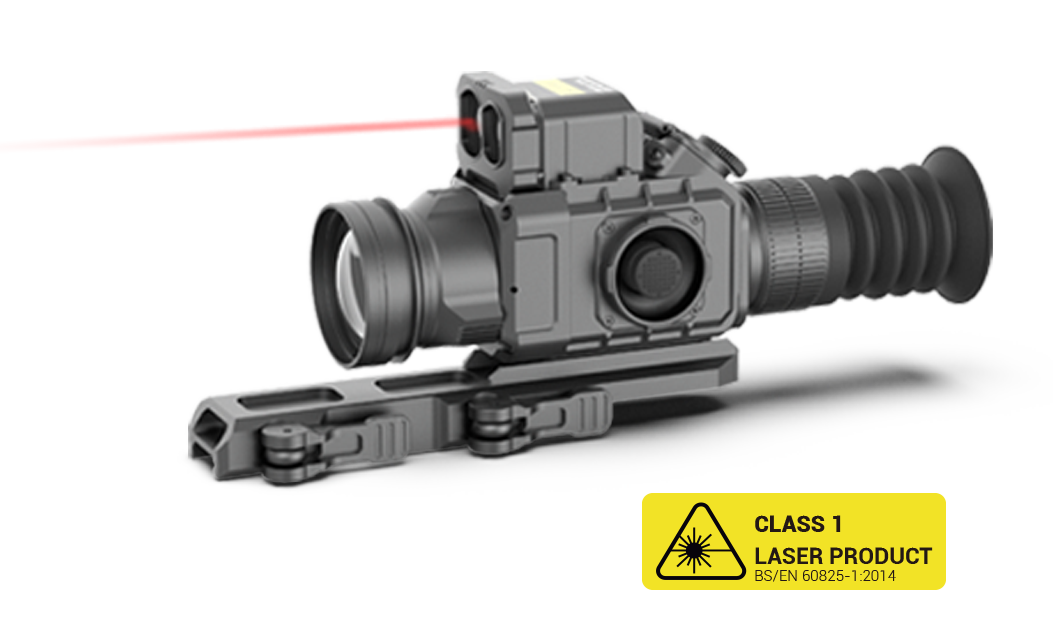

Built-in Precise Laser Rangefinder Reading Up To 1km

Polaris is capable of accurately measuring distance to objects up to 1000 meters away. The Integrated, precise laser rangefinder provides three modes -single time measurement mode, scanning mode and high-humidity mode.
            -Wavelength: 905 nm
            -Max. measuring range: 1000 m
            -Measurement accuracy :± 1m

1200G High Shock Resistance

Polaris features high shock resistance and can be used with rifled hunting weapon for such cartridges as 9.3х64,.30-06,.300, .375. etc, and with smooth-bore and airsoft weapon.

Extreme Detection Range

A powerful F35 /1.1 or F50/1.1 objective lens combined with a highly-sensitive thermal imaging sensor provides exceptional detection capabilities.
Polaris Specification
Model Polaris 335R Polaris 335RL Polaris 350R Polaris 350RL Polaris 635R Polaris 635RL Polaris 650R Polaris 650RL
Main Characteristics
Detector Uncooled Vox
Resolution 384×288 640×512
Frame rate 50Hz
Pixel 12μm
Spectral range 8-14μm
NETD <20mK
Optical Characteristics
Objective lens 35mm 50mm 35mm 50mm
Magnification 2.7× 3.8× 1.5× 2.2×
FOV(H×V), m@100m 13.2×9.9 9.2×6.9 21.9×17.6 15.4×12.3
Functions
Zoom 1×/2×/4× 1×/2×/4×/8×
Palettes 6
Firmware update via APP YES
Display
Type OLED
Resolution 1024×768
External video WIFI
Built-in memory 64GB
Power Supply
Battery 2×18650
External power supply 5V USB-C
Operating time (at t=22°C) 10h
Physical Characteristics
Weight 618g 688g 650g 720g 623g 693g 665g 720g
Dimension, mm 180×76×83 180×76×100 196×76×83 196×76×100 178×76×83 178×76×100 188×76×83 188×76×100
Environmental Compatibility
Ingress protection rating IP67
Operating temperature -20°C-+50°C
Storage temperature -40°C-+70°C
Shock resistance 7000J
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014 / 1 / 1 / 1 / 1
Measuring range / 5-1000m / 5-1000m / 5-1000m / 5-1000m
Measurement accuracy / ± 1m / ± 1m / ± 1m / ± 1m
