tALON

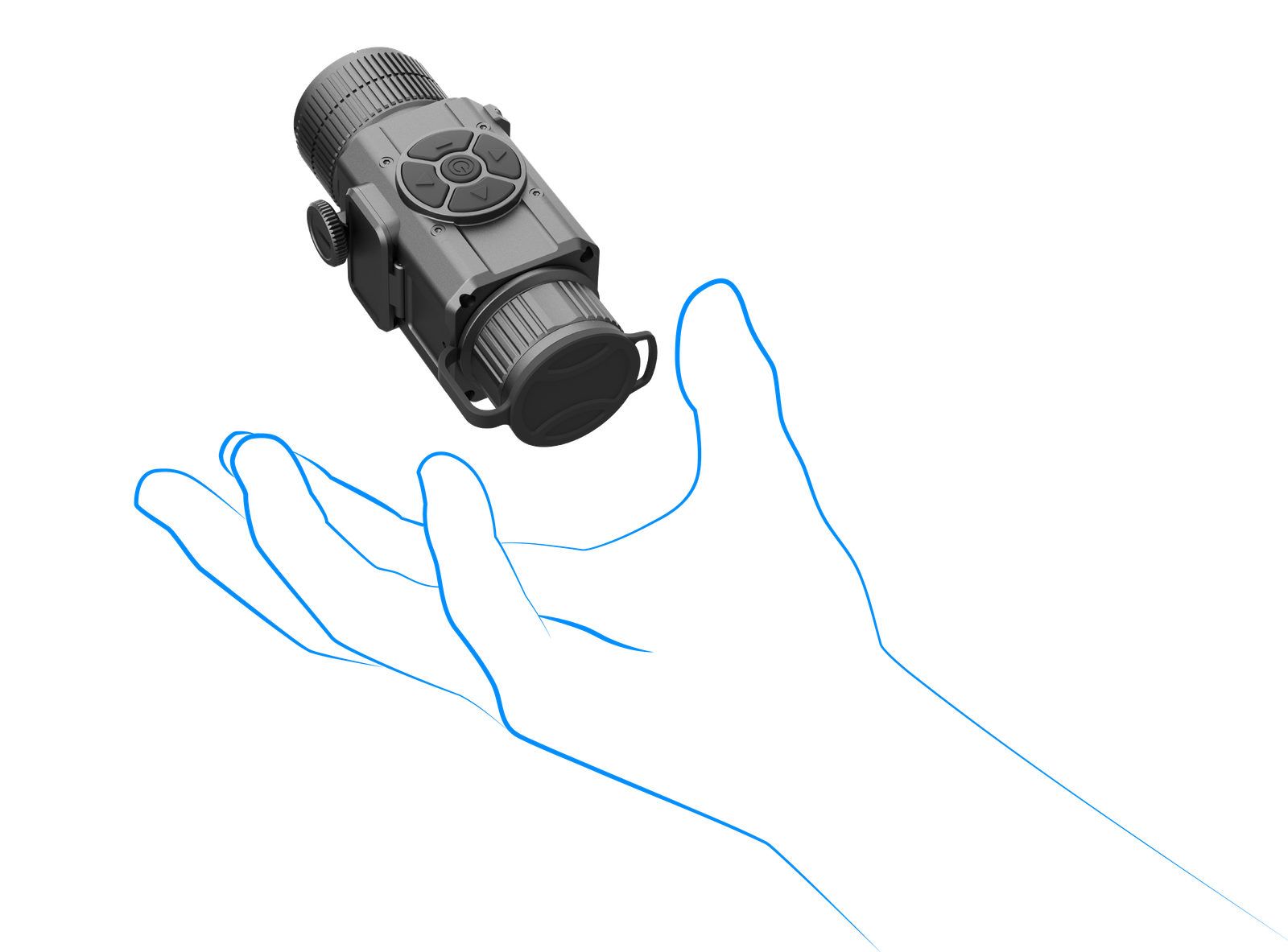

Compact and lightweight design

Higly sensitive thermal sensor

Talon Specification
Model Talon 325
Main Characteristics
Detector Uncooled Vox
Resolution 384×288
Frame rate 50Hz
Pixel 12μm
Spectral range 8-14μm
NETD <30mK
Optical Characteristics
Objective lens 25mm
Optical magnification 1.9×
FOV(H×V), m @100m 18.5×13.8
Functions
Zoom 1×/2×/4×
Palettes 4
Firmware update via APP YES
Display
Type OLED
Resolution 1024×768
External video WIFI
Built-in memory 64GB
Power Supply
Battery 2×CR123
External power supply 5V USB-C
Operating time (at t=22°C) 3h
Physical Characteristics
Weight without battery 440g
Dimension 55×57×150mm
Environmental Compatibility
Ingress protection rating IP67
Operating temperature -20°C-+50°C
Storage temperature -40°C-+70°C
Shock resistance 7000J
