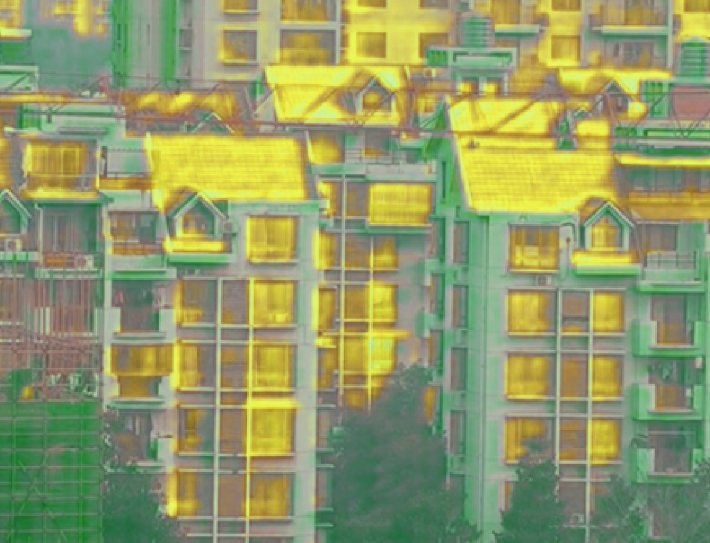

Highly sensitive thermal imaging sensor
Equipped with a highly sensitive thermal imaging sensor, Multi excels in delivering exceptional detail recognition, even in environments with low thermal contrast such as snow, dust, smoke, fog, and haze. This capability ensures reliable performance across a range of atmospheric conditions, making it an indispensable tool for professional use.
Three-in-one
Multi-functional device merges the benefifits of thermal infrared, daylight, and night vision imagery into a single device, providing unparalleled versatility in various scenarios.
7000J high shock resistance
Multi-functional EO Device features high shock resistance and can be used with rifled hunting weapon for such cartridges as 9.3х64,.30-06,.300, .375. etc, and with smooth-bore and airsoft weapon.

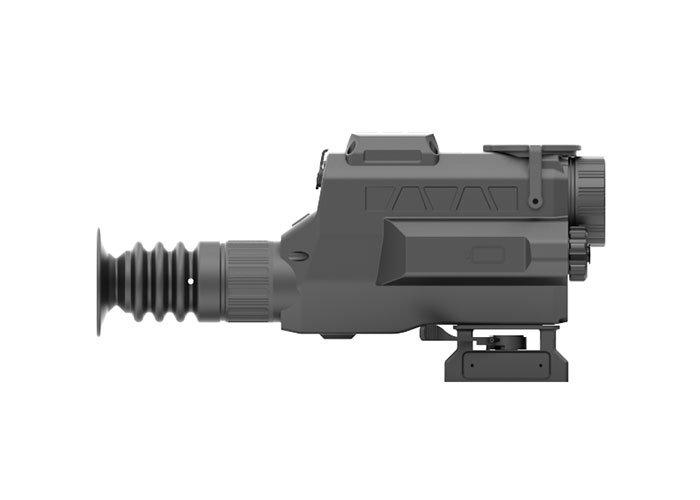

| Dual-function thermal weapon sight specification | |
|---|---|
| Main Characteristics | |
| Detector | Uncooled Vox |
| Resolution | 384×288 |
| Frame rate | 50HZ |
| Pixel | 12μm |
| Spectral range | 8-14μm |
| NETD | <25mK |
| Optical Characteristics | |
| Clear aperture | 25mm |
| FOV | 6.5° |
| Magnification | 4x |
| Exit pupil | 42.5mm |
| Exit pupil diameter | 6.25mm |
| Display | |
| Type | OLED |
| Resolution | 1920×1080 |
| External video | WIFI |
| Built-in memory | 32G |
| Functions | |
| Zoom | 1x/2x/4x/PIP |
| Palettes | Multiple optional |
| Dual-channel | Thermal infrared / visible light switchable |
| Physical Characteristics | |
| Battery | 2×18650 |
| Operating time (at t=22°C) | 6h |
| Weight (without battery) | 850g |
| Dimension,mm | 192×78×104 |
| Ingress protection rating | IP67 |
| Operating temperature | -20°C ~ 50°C |
| Storage temperature | -50°C ~ 70°C |
