monocular
- Thermal Monocular
- Tracer

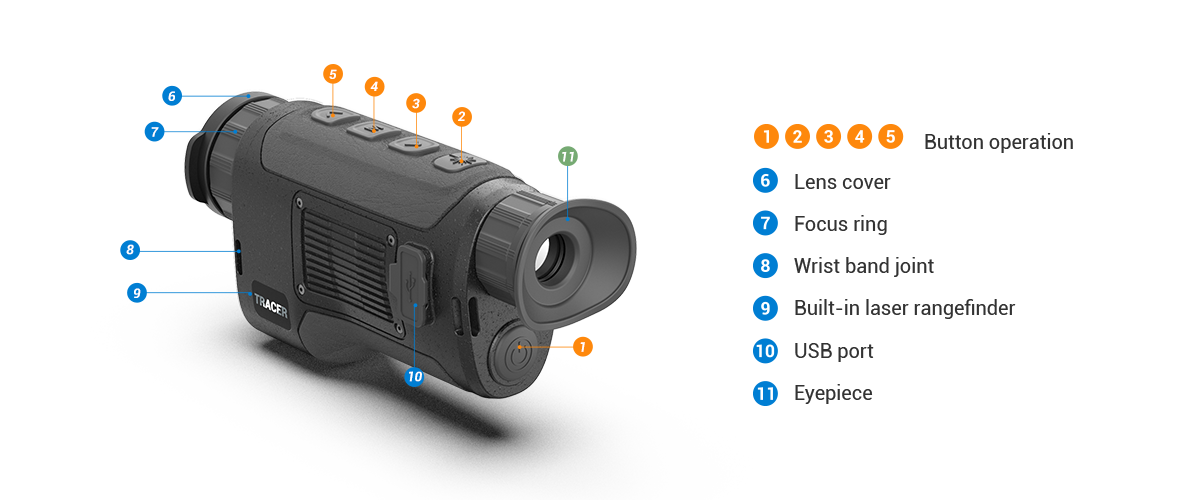

Ergonomic design

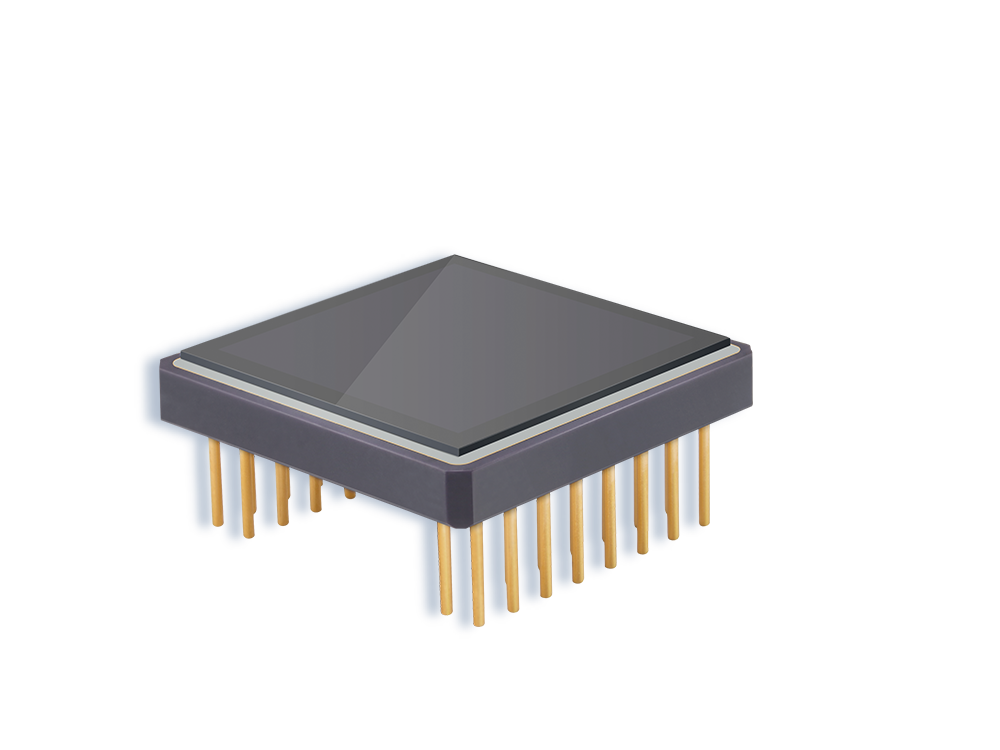

High sensitive Thermal image sensor
The units have high sensitive ＜25mK NETD thermal imaging sensor. This provides Tracer with the wonderful detail recognition even when the thermal contrast of the surroundings is low – during the snow, dust, smoke, fog, haze, and other atmospheric obscurants.

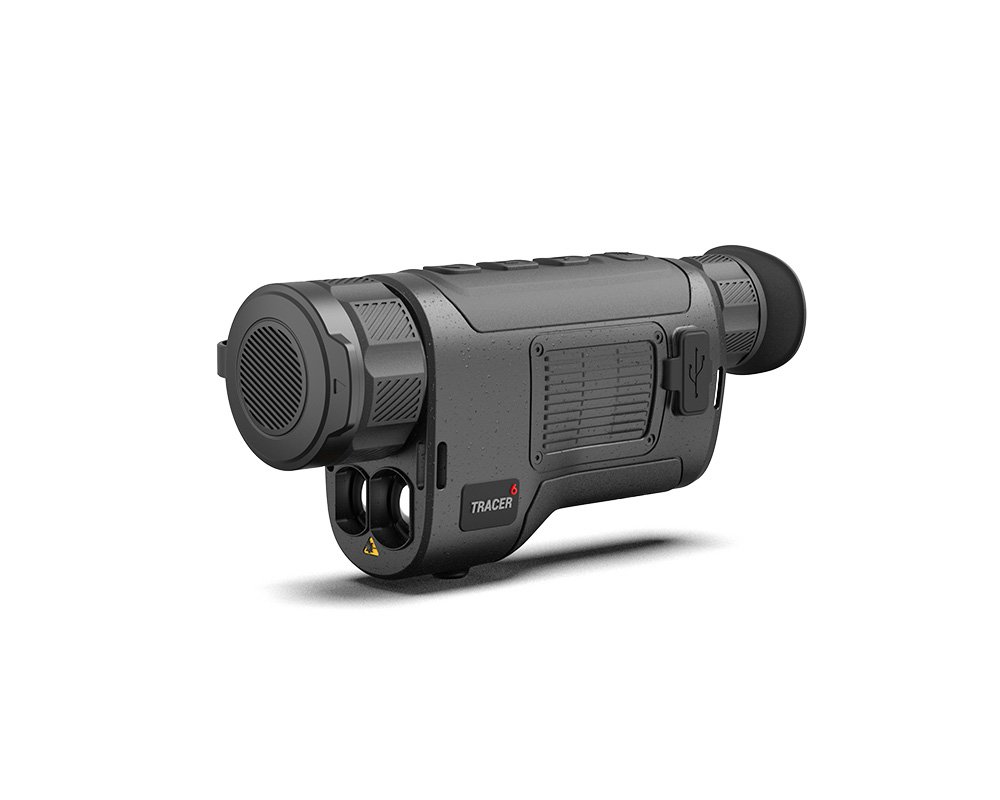

Built-in Laser rangefinder
Tracer is capable of accurately measuring distance to objects up to 1,000 meters away.
Wavelength: 905 nm
Max. measuring range: 1000 m
Measurement accuracy :± 1m
(Safety class for laser equipment according to IEC 60825-1:2014: 1)
Detection Range
A powerful F25/1.0, F35 /1.1 or F50/1.1 objective lens combined with a 384×288@12µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities.
| Tracer Specification | |||||
|---|---|---|---|---|---|
| Tracer 25LRF Pro | Tracer 35LRF Pro | Tracer 50LRF | Tracer⁶ 35LRF | Tracer⁶ 50LRF | |
| Detector | |||||
| Type | Uncooled Vox | ||||
| Resolution | 384×288 | 640×512 | |||
| Frame rate | 50Hz | ||||
| Pixel | 12μm | ||||
| Spectral range | 8-14μm | ||||
| NETD | <25mk | ||||
| Optical Characteristics | |||||
| Objective lens | 25mm | 35mm | 50mm | 35mm | 50mm |
| Magnification | 2.4X | 3.3X | 4.8x | 1.9x | 2.7x |
| Field of view (H×V), degrees | 10.6° × 7.9° | 7.5° × 5.7° | 5.3° × 4° | 12.57° × 10° | 8.8° × 7° |
| Close-up range | 5m | ||||
| Dioptre adjustment | -5D-4D | ||||
| Functions | |||||
| Zoom | 1X/2X/4X | ||||
| Palettes | 6 | ||||
| Display | |||||
| Type | OLED | ||||
| Resolution | 1024×768 | ||||
| Power Supply | |||||
| Battery | Built-in lithium battery | ||||
| External power supply | 5V USB-C | ||||
| Operating time (at t=22°C) | 8h | ||||
| Physical Characteristics | |||||
| Weight without battery | 530g | 540g | 590g | 550g | 600g |
| Dimension, mm | 165×50×92 | 170×50×92 | 176×56×92 | 180×56×95.5 | 183×60×92 |
| Environmental Compatibility | |||||
| Ingress protection rating | IP67 | ||||
| Operating temperature | -20℃-50℃ | ||||
| Storage temperature | -40℃-60℃ | ||||
| Laser Rangefinder | |||||
| Safety class for laser equipment according to IEC 60825-1:2014 | 1 | ||||
| Measuring range | 5-1000m | ||||
| Measurement accuracy | ±1m | ||||
