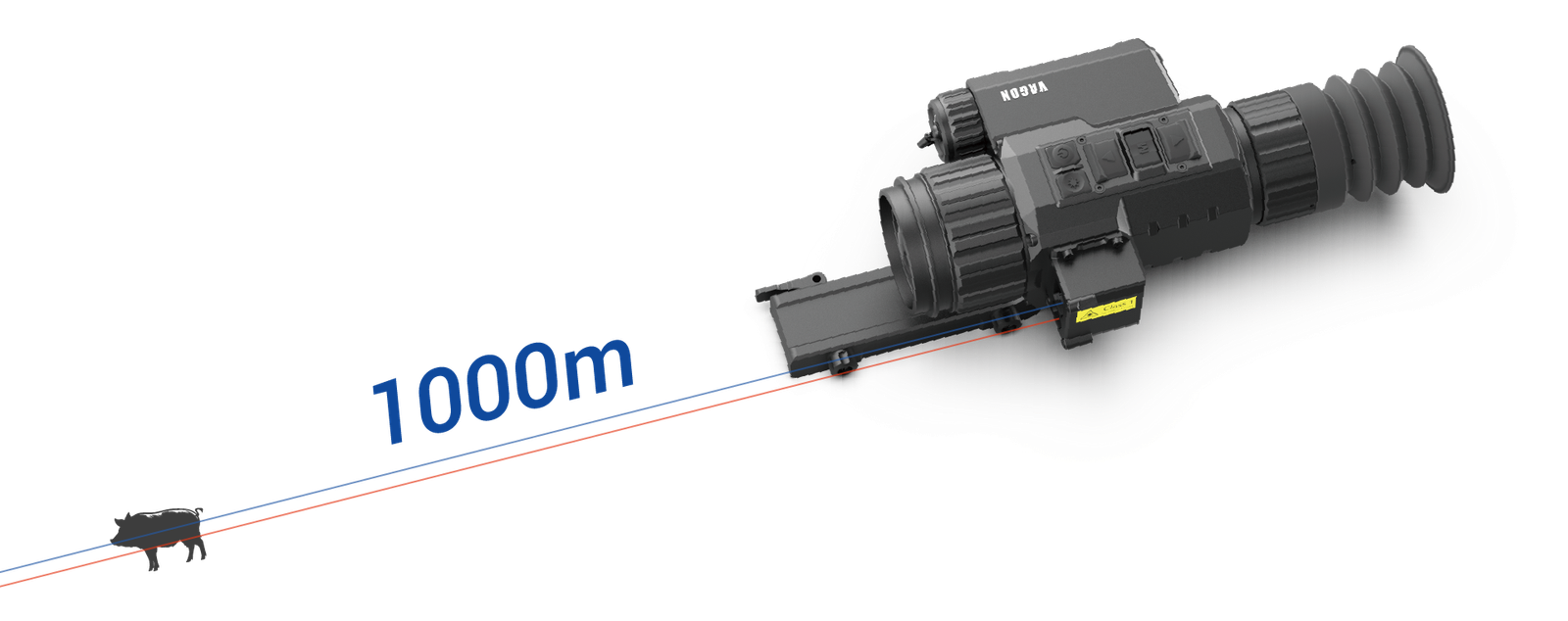

Built-in laser rangefinder
Vagon can precisely measure distances to objects as far as 1000 meters, equipped with an integrated laser rangefinder offering both single and scanning measurement modes.
Highly sensitive thermal sensor

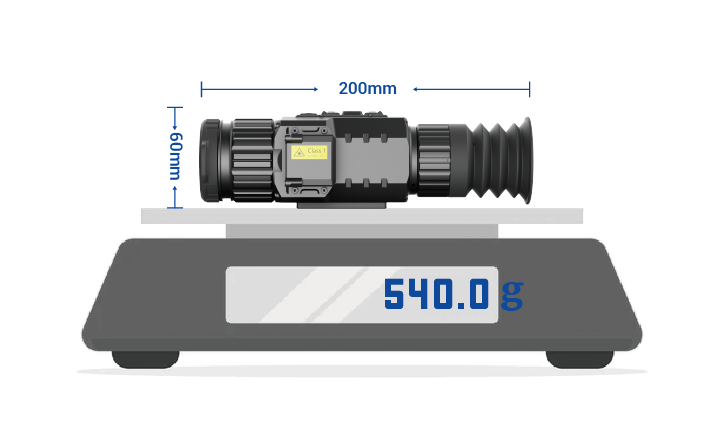

Ultra-light, ultra-compact
The compact and lightweight design provides easier portability, balance and accuracy of the rifle, and comfort when hunting.
6000J high shock resistance
Recoil rated up to .223 Rem, .234 Win, .270 Win, .308 Win, .30-06 SPRG, 9.3×62, .300 Win Mag.

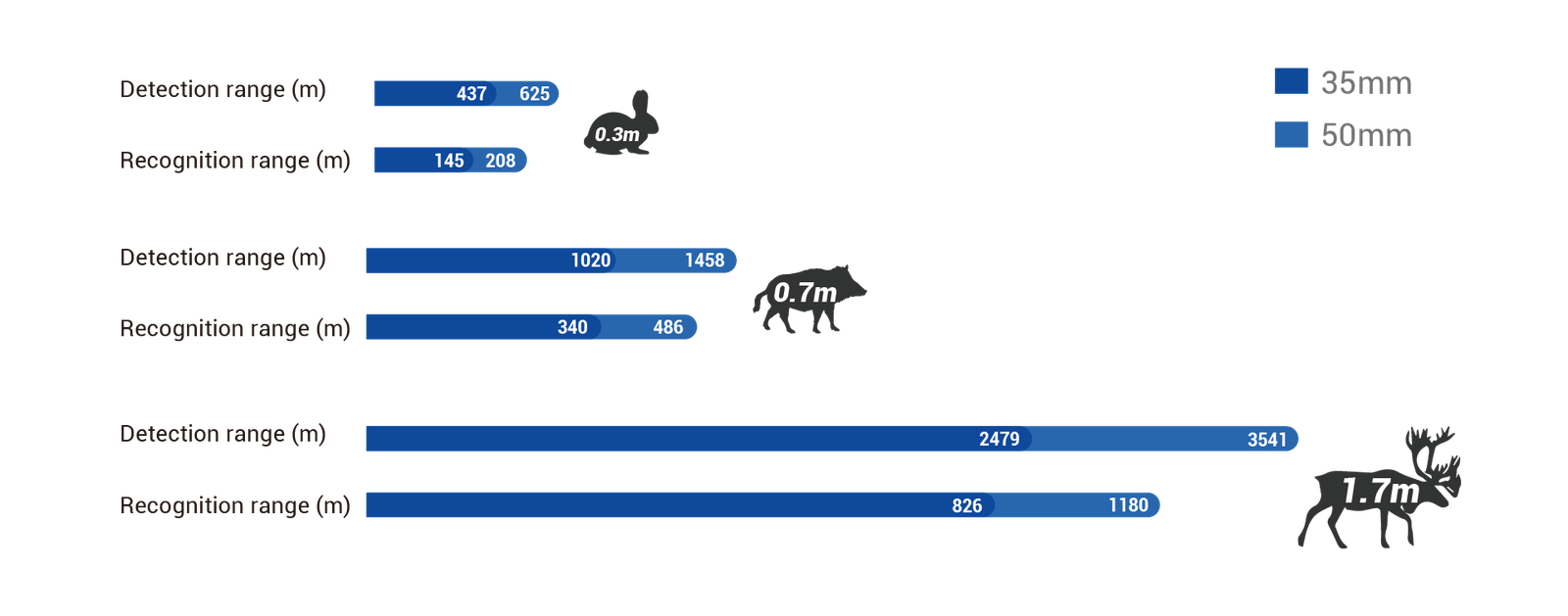

Extreme detection range

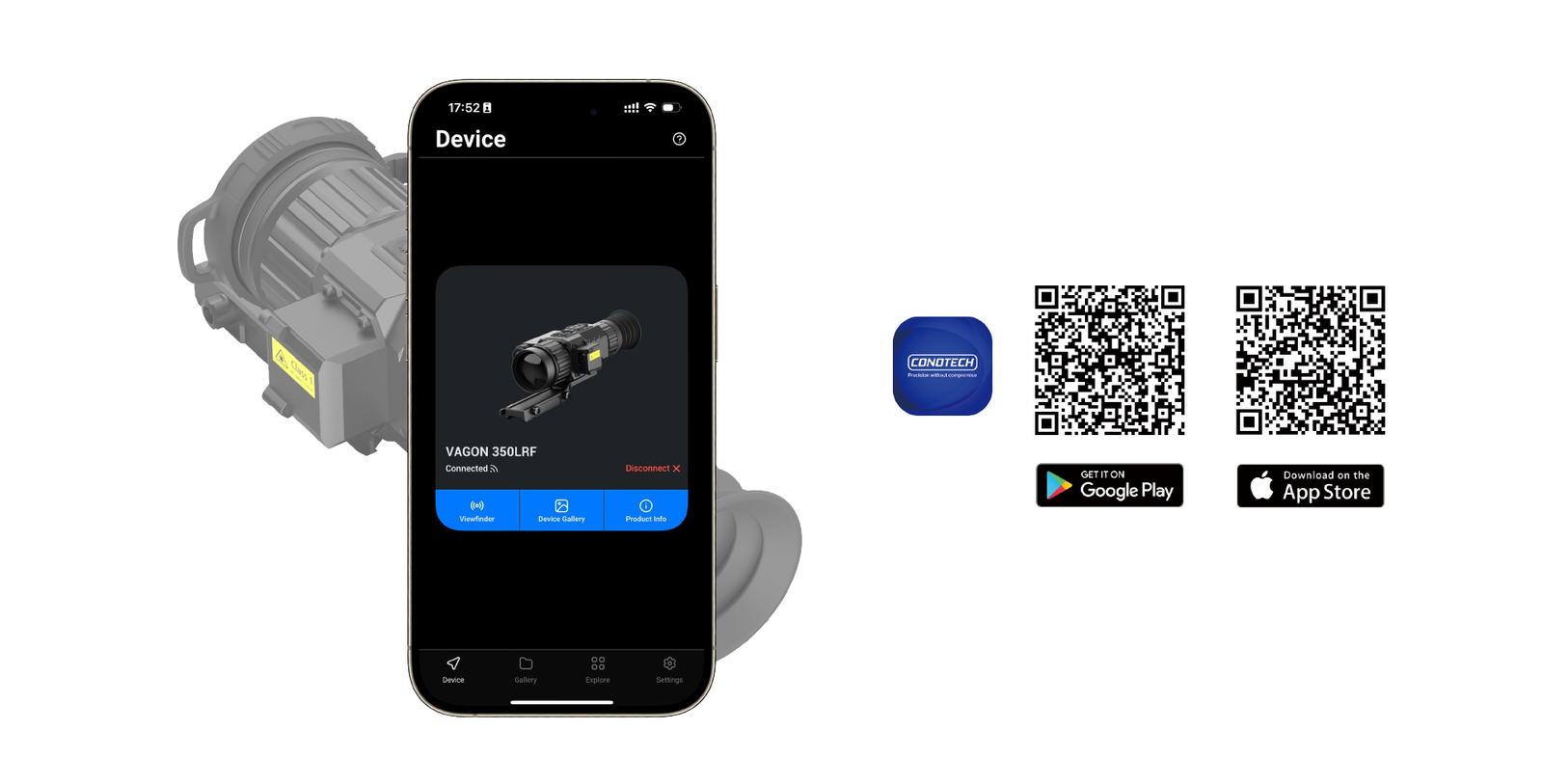

Firmware update via APP

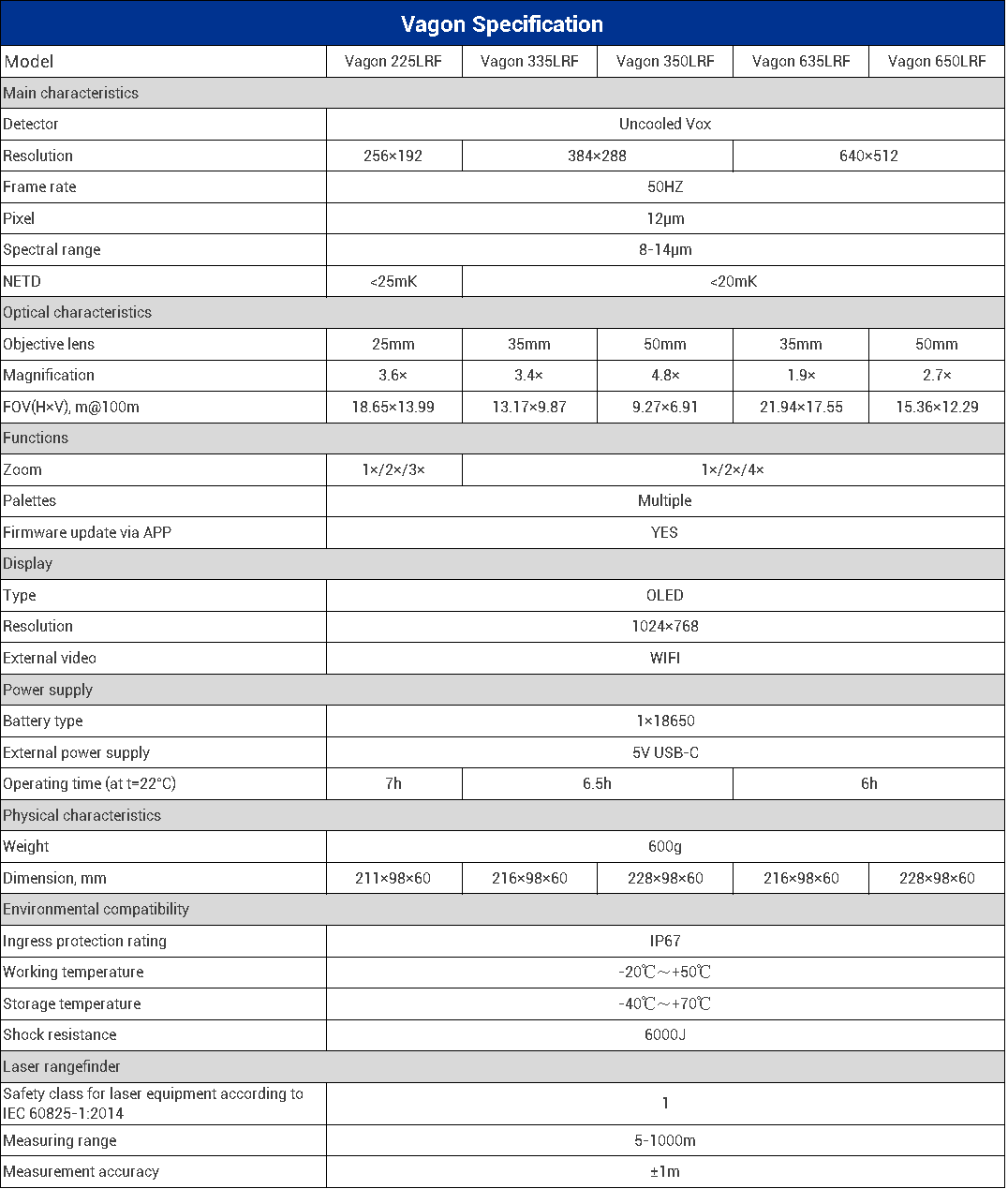

| Vagon Specification | ||
|---|---|---|
| Model | Vagon 335LRF | Vagon 650LRF |
| Main Characteristics | ||
| Detector | Uncooled Vox | |
| Resolution | 384×288 | 640×512 |
| Frame rate | 50HZ | |
| Pixel | 12μm | |
| Spectral range | 8-14μm | |
| NETD | <20mK | |
| Optical Characteristics | ||
| Objective lens | 35mm | 50mm |
| Magnification | 3.4× | 2.7× |
| FOV(H×V), m@100m | 13×9.8 | 15.36×12.29 |
| Functions | ||
| Zoom | 1×/2×/4× | |
| Palettes | 4 | |
| Firmware update via APP | YES | |
| Display | ||
| Type | OLED | |
| Resolution | 1024×768 | |
| External video | WIFI | |
| Built-in memory | 64GB | |
| Power Supply | ||
| Battery type | 1×18650 | |
| External power supply | 5V USB-C | |
| Operating time (at t=22°C) | 6h | |
| Physical Characteristics | ||
| Weight | 540g | 560g |
| Dimension, mm | 200×97×60 | 207×97×60 |
| Environmental Compatibility | ||
| Ingress protection rating | IP67 | |
| Working temperature | -20°C-+50°C | |
| Storage temperature | -40°C-+70°C | |
| Shock resistance | 6000J | |
| Laser Rangefinder | ||
| Safety class for laser equipment according to IEC 60825-1:2014 | 1 | |
| Measuring range | 5-1000m | |
| Measurement accuracy | ±1m | |
